DENON DJ D-Day

DENON DJ D-Day

Archiv 16. August 2010

Denon D Day Zur DJ-Expo in Atlantic City präsentiert DENON eine ganze Palette neuer, interessanter Produkte und Updates*.

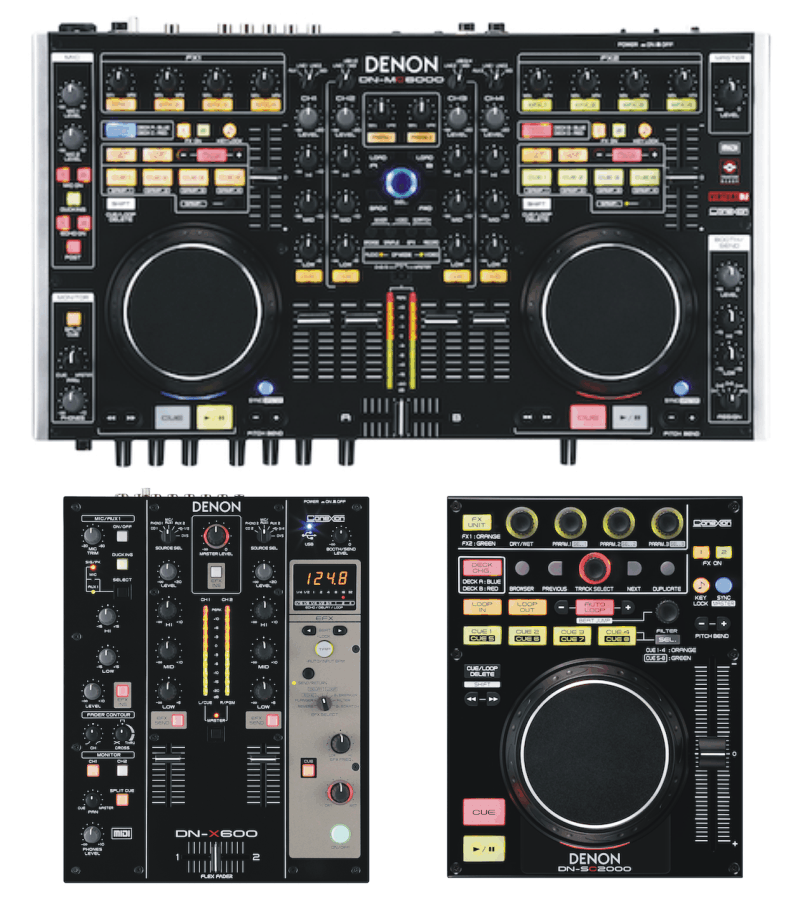

Da wäre zum ersten der DN X600, ein digitaler Zweikanalmixer mit integrierter Soundkarte, MIDI-Fähigkeit und Effekten. Weiterhin sind zwei Controller angekündig. Der DN MC6000 ist ein opulent ausgestatteter 4-Deck Controller mit kompletter Mixersektion und inklusive Audiointerface. Aufs Einzelteil abgespeckt nennt sich das dann DN SC2000 und ist eine Singledeck-Einheit, mit der sich auch zwei Decks steuern lassen. Bei beiden Controllern wird auf Traktor fokusiert.

Hier die Details und diese, da umfangreich, mal ausnahmweise c&p in englisch.

DN-X600 – 2 Channel Digital Mixer

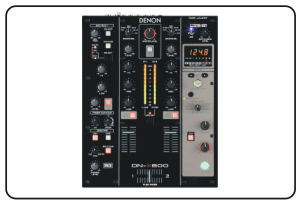

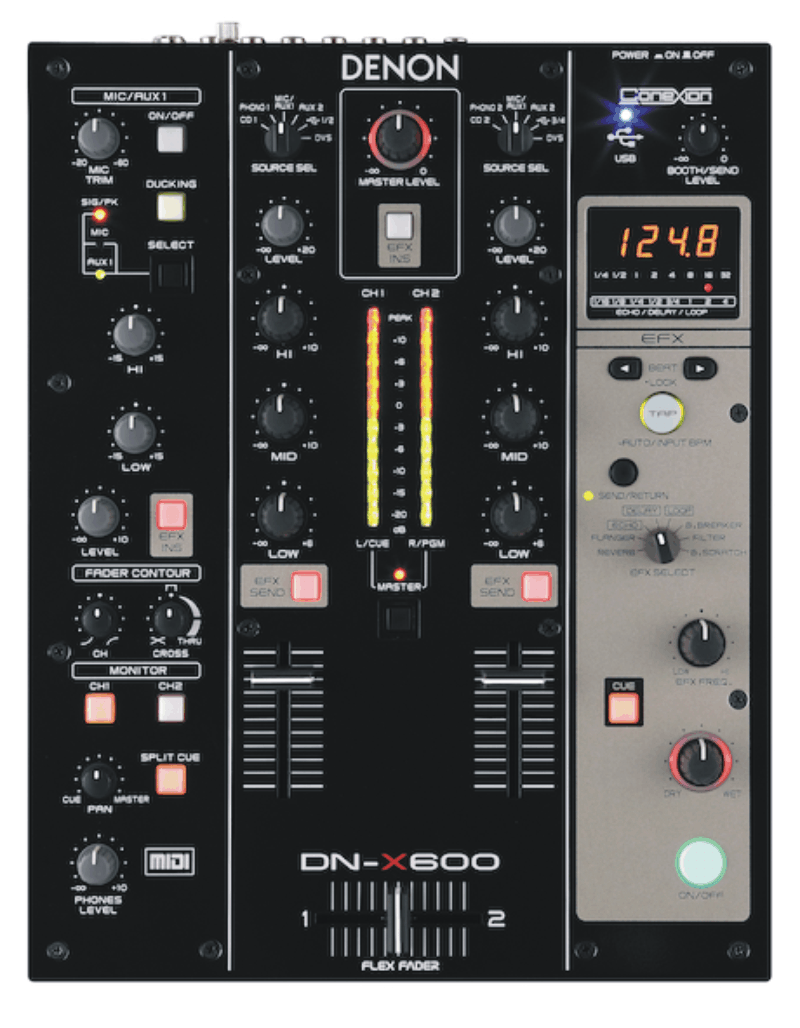

DN X600
• 24 bit 96kHz USB2.0 Audio Interface (Soundcard) 4in/4out (stereo)
• DVS direct mode (CD/Vinyl) for DJ applications using platter control signal operation (timecode)
• Fully MIDI Mappable control surface (knobs, keys and buttons)
• Intuitive On-board DSP Effects area with, ON/OFF button, Dry-Wet mix & independent Send assignment (Ch/Mic/Master): Delay / Echo / Flanger / Filter / Reverb / Loop / Beat Scratch / BeatBreaker
• Powerful 2-way EFX Parameter Filter: 1) Cross Over (comb filter) / 2) Isolator (Low pass filter/ High pass filter)
• Internal 32-bit Floating DSP Processing and 32-Bit DAC Output for best possible sound
• MAC OSX 10.6.4 and 32/64-bit Windows XP/Vista/Win7 Compatible
• Low latency 32/64 Bit ASIO driver for PC included
• Send/Return control -for use with external effectors
• USB Send/Return routing -for use with DJ software DSP effects such as Traktor
• USB MIDI Clock In BPM Detection -for use with, Traktor, Torq, Ableton, Cubase…etc
• Matrix Input Assignment Selector Knob
• Selectable PFL input gain & program meters
• Split Cue function with Cue/Master pan knob
• Phono Amp with high S/N ratio, equivalent to Denon Hifi products
• Ultra clean Mic Amp to realize a studio console class’ low noise level (EIN -126dBu)
• High sound quality high output Headphone Amplifier
• 45mm High Performance Flex Fader (cross fader) w/tension adjust
• Innofader Pro compatible (for cross fader) *see Audio Innovate for more info
• 45mm custom Alps type Channel Faders
• Channel Fader contour adjustment
• Unique 32-point Cross Fader Contour adjustment with: Contour Adjust / Cross Fader Start Position off the edge (0~2mm range) / „Thru“ function for pure MIDI to control Video fades (VDJ, VSL)

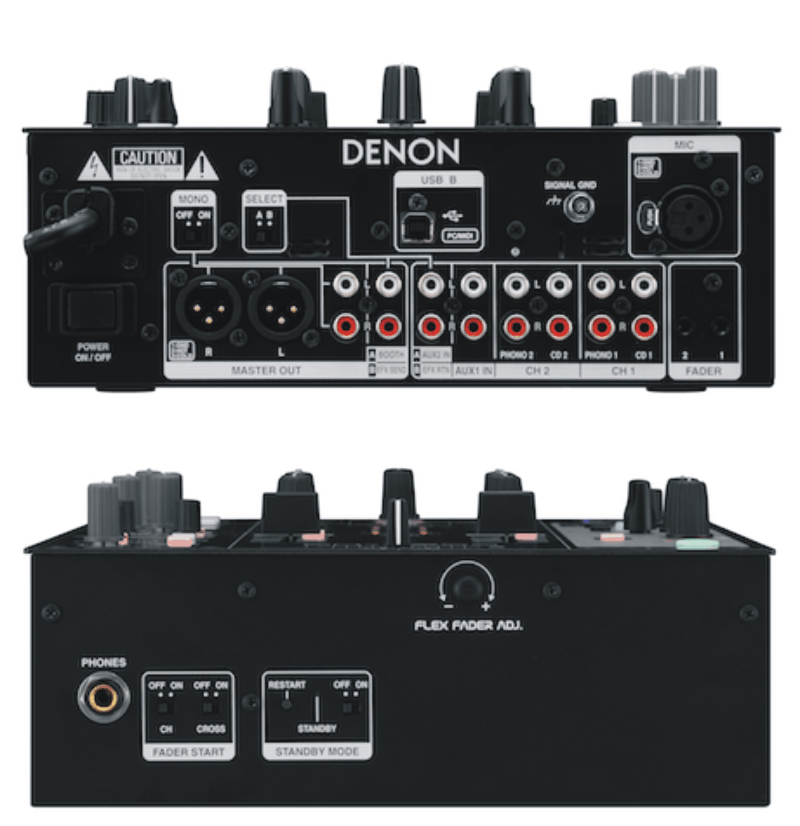

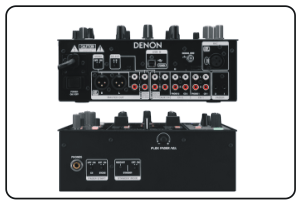

DN X600
• Fader Start function (channel/cross fader)
• Independent 3-Band Isolator EQ w/Kills (High-Mid-Low)
• Large BPM Display w/various beat/time parameter indicators
• Balanced/Unbalanced Master Output
• Master Output Stereo/Mono switch
• Booth Output w/level control
• Mic Input w/Ducking control & 2-Band EQ
• Various Utility presets to customize user settings
• Ideal Grounding Construction protecting from external noise
• ECO stanby mode (green, energy saving)
• Firmware upgradablle over USB
• Solid Steel chassis construction

[youtube m-PqfXb8wMI]

Angekündigt für Herbst 2010 und etwa 850 US-Dollar.

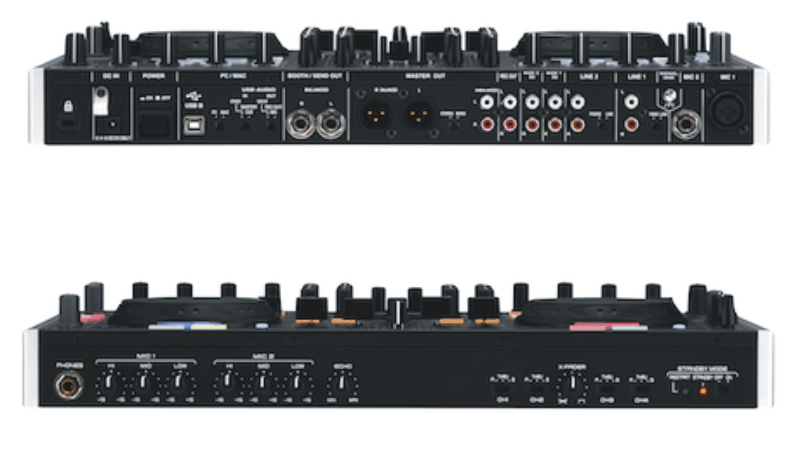

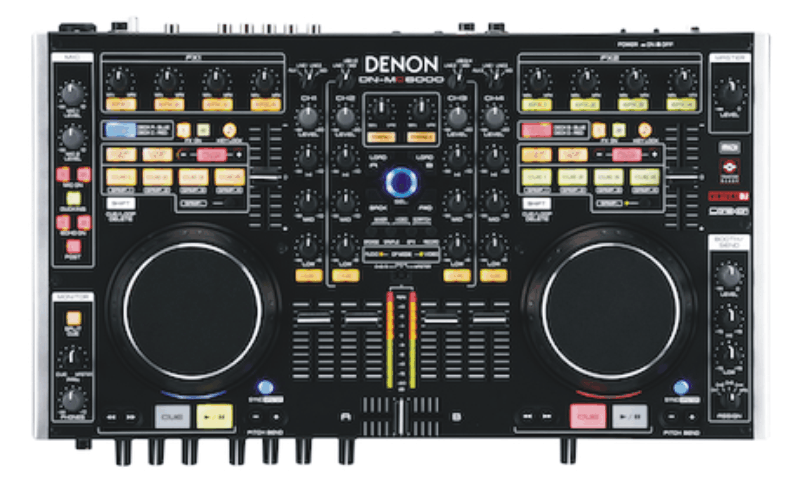

DN-MC6000 – Full Mixer / 4–deck MIDI Controller

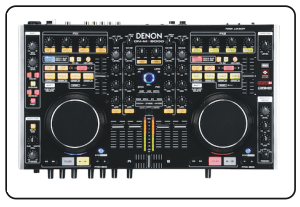

DN MC6000
• Computer Independent 4-Channel, 8 Source Premium Digital Mixer
• Slim Tabletop design for various DJ applications and portability
• Includes 19″ rackmount accessory kit for Mobile DJs
• Optimized for *Traktor and *Virtual DJ users
• Intuitive 4 deck software control, with visible deck color change
• Real-time Matrix Operation, Analog Sources, USB MIDI & USB Audio
• Included USB Audio Interface (Soundcard) 2in/2out (stereo)
• MAC OSX Windows XP/Vista/Win7 Compatible
• New, 3-way Powerful Audio/Video Assignable cross-fader
• Newly designed, high resolution 105mm Touch-Sensitive Jog Wheel
• Smooth 100mm long Pitch Slider with high 14-bit resolution
• Pitch/Fader/Volume Lock function – holds the last known Audio value and position until the NULL point is reached again
• File browse navigation keys & rotary encoder file selector knob w/illuminated ring
• 8 (4 + 4) Hot Cue/Sampler buttons w/dual bank selector key

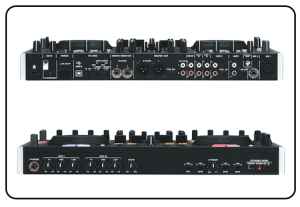

DN MC6000
• Auto Loop Button w/ Beat Jump (Loop Cut)
• Manual Loop In/Out buttons
• Large size Cue & PLAY buttons
• Various EFX control, EFX keys & Parameter knobs
• Various GUI control, Mixer, Video, Scratch, Sampler, REC,
• Powerful Shift Key – used for various dual button operation
• Search Keys (<< >>) to advance around within the file
• Denon’s legacy „Pitch Bend“ keys
• Vinyl & Pitch Bend Jog modes
• SYNC key for beat matching between decks
• Key Lock on/off button with LED confirmation
• Matrix Input Assignment Selector Knob
• Selectable PFL input gain & program meters
• Independent CUE System (all channels)
• Split Cue function with Cue/Master pan knob
• High quality, high output Headphone Amp
• 45mm Channel & Cross Faders
• Independent Channel A-B Thru Switch (crossfader)
• Cross Fader contour adjustment
• Independent 3-Band Channel EQ w/Kills (High-Mid-Low)
• XLR Balanced & RCA Unbalanced Master Output
• Master Output Stereo/Mono switch
• Booth Output w/Source Selector & level control
• XLR & 1/4 TRS Mic Inputs
• Mic 3-Band EQ (High-Mid-Low) for Mic 1 & 2
• Mic Ducking & Built in Echo Effect for Mic 1 & 2
• Various Utility presets to customize user settings
• MIDI Mappable control surface (Faders, knobs and buttons) for other DJ applications
• Firmware upgradable over USB
• Solid Steel chassis construction
• Kensington lock terminal to prevent theft
• ECO standby mode (green, energy saving)
• AC adaptor powered

Angekündigt für Herbst 2010 und etwa 950 US-Dollar. Kommt in Europa inklusive Traktor LE Software.

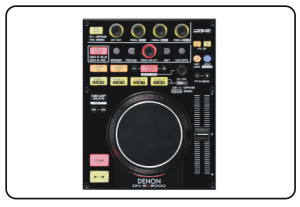

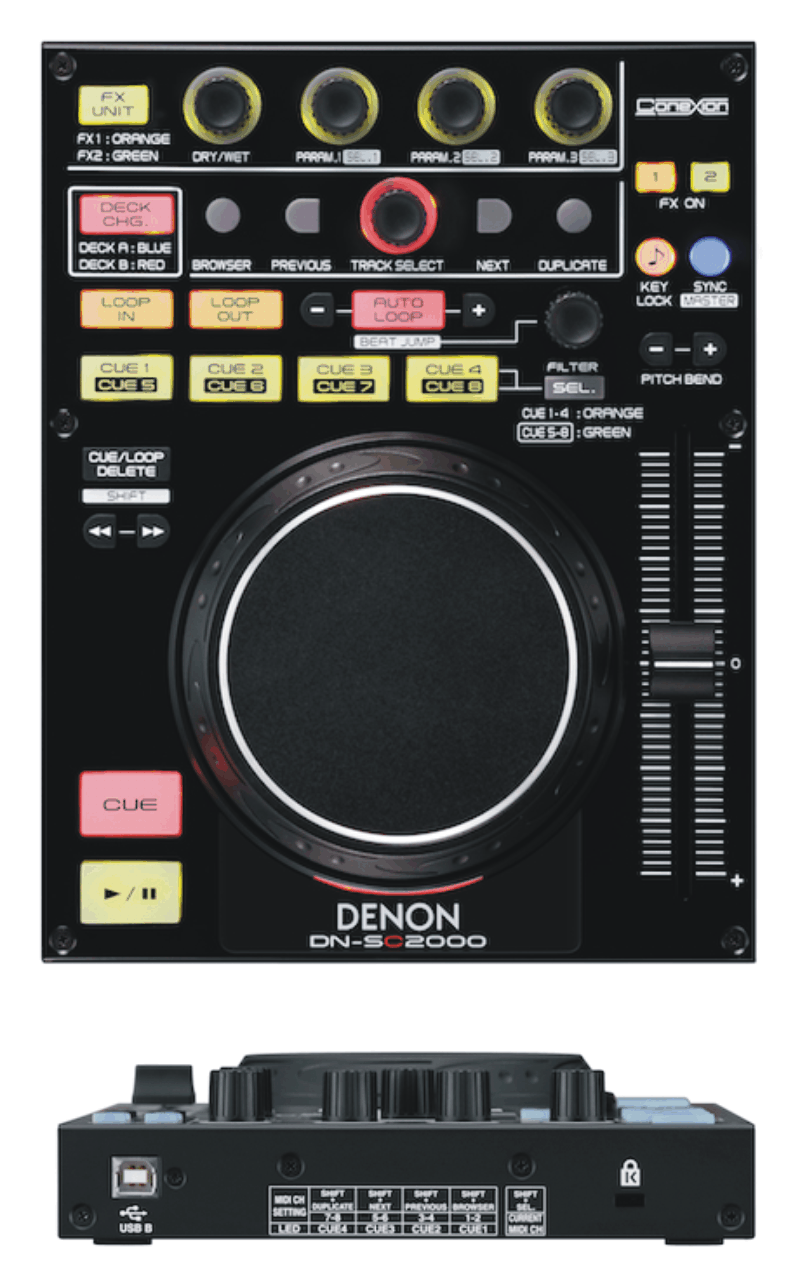

DN-SC2000 – USB MIDI Controller w/2 Deck Support
DN SC2000
• Optimized for Traktor Pro users and supported by Virtual DJ
• Intuitive 2 deck control by single unit, with visable deck color change
• Newly designed, high resolution 105mm Touch-Sensitive Jog Wheel
• Smooth 100mm long Pitch Slider with high 14-bit resolution
• Pitch Lock function – holds the pitch value position until the NULL point is reached when using both layers for control
• File browse navigation buttons & rotary encoder file selector knob w/illuminated ring
• Large size Cue & PLAY buttons
• 8 (4 + 4) Hot Cue/Sampler buttons w/dual bank selector key
• Auto Loop Button w/ Beat Jump (Loop Cut)
• Manual Loop In/Out buttons
• EFX Unit 1 & 2 layer button w/color change LED
• Dry/Wet Parameter encoder knob w/illuminated ring
• 3 EFX Parameter encoder knobs w/illuminated ring
• EFX 1&2 ON/OFF buttons w/color change LEDs
• Powerful Shift Key – used for various dual button operation
• Search Keys (<< >>) to advance around within the file
• Denon’s legacy „Pitch Bend“ keys
• Vinyl & Pitch Bend Jog modes
• SYNC key for beat matching between decks
• Key Lock on/off button with LED confirmation
• Utility presets to adjust paired MIDI channels, 1-8 and other items
• USB 2.0 full speed Composite device
• USB bus powered (400mA max), no wall adaptor required
• Kensington lock terminal to prevent theft
• High Quality Steel Cabinet in a compact size

[youtube iaoiusbOgDE]

Angekündigt für Herbst und etwa 300 US-Dollar.

* Auch für bisherige Produkte wird etwas getan: Der Mixer DN X1600 wird in den Kreis der Traktor Scratch zertifizierten Mixer aufgenommen und der Player DNS 3700 erhält per kostenlosem Firmwareupdate einen  Hydrid Mode. Mit diesem kann DJ-Software, speziell Serato Scratch Live, direkt mit einem, vom DSP-Chip generierten, Timecode gesteuert werden. Man braucht also keine Timecode-CD mehr. Der DNS 1200 soll demnächst ähnlich befähigt werden.

Mehr dazu unter  www.denondj.com
